340 – 355WP 144 CELL SOLAR PV MODULE
Our products are engineered to meet the highest possible standards of reliability, quality, and performance. We operate on the very forefront of innovations in solar technology thanks to our core research and development teams. Additionally, we frequently engage in study programs with leading facilities throughout the world. Our cutting-edge production facilities have been equipped with the greatest tools and machines, guaranteeing industry-leading quality and cutting-edge technology.
| Module type | JS-20340HC | JS-20345HC | JS-20350HC | JS-20355HC |
|---|---|---|---|---|
| Maximum Power (Pmp) | 340 | 345 | 350 | 355 |
| Open Circuit Voltage (Voc) | 45.63 | 45.68 | 45.73 | 45.78 |
| Short Circut Current (Isc) | 9.47 | 9.60 | 9.73 | 9.85 |
| Maximum Power Voltage (Vmp) | 38.13 | 38.18 | 38.23 | 38.28 |
| Maximum Power Current (Imp) | 8.92 | 9.04 | 9.16 | 9.28 |
| Module Efficiency (nm) | 16.80 | 17.05 | 17.29 | 17.54 |
| Power Tolerance | -0, +5 | |||
| Maximum System Voltage | 1000V / 1500VDC | |||
| Maximum Series Fuse Rating | 15A |
| Pmax Temperature Coefficient | -0.35% / °C |
| Voc Temperature Coefficient | -0.31% / °C |
| Isc Temperature Coefficient | 0.06% / °C |
| Operating Temperature | -40°C TO + 85°C |
| Normal Operating Cell Temperature | 45 TO ± 2°C |
| Container | 20' GP | 40' GP |
| Pieces per Pallet | 25 | 25 |
| Pallet per Container | 10 | 22 |
| Pieces per Container | 250 | 550 |

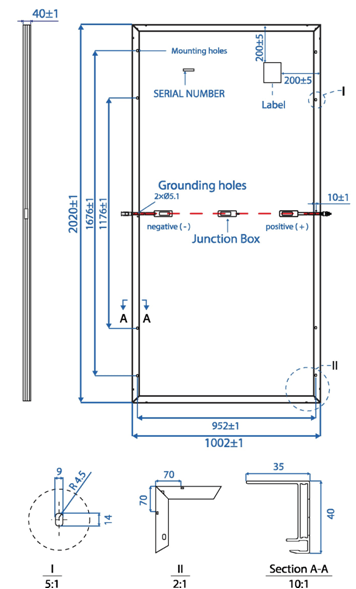

| External Dimensions | 2020 x 1002 x 40 mm |
| Weight | 24 kg |
| Solar Cells | Polycrystalline 158.75mm x 158.75mm |
| Front Glass | 3.2 mm, High Transmission, Low Iron, TemperedGlass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | 3 Split, IP68 Rated |
| Output Cable | 4.0 Sqm |
| Connector | MC4 Compatible |
| Mechanical Load | 5400 Pa for Snow Load, 2400 Pa Wind Load |
